CAPTO-Style Rope Grab & Pulley | 3MF Digital Download

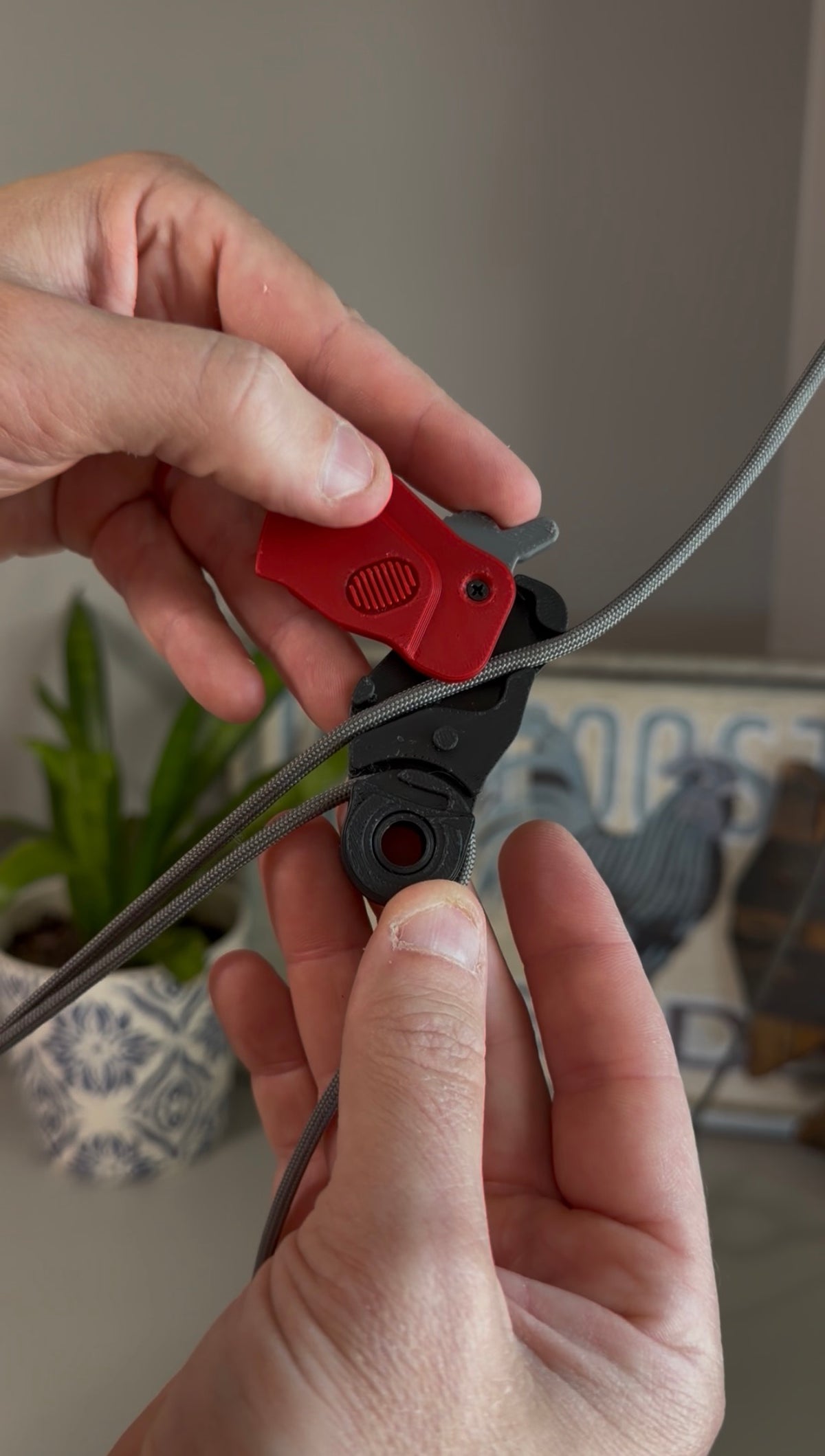

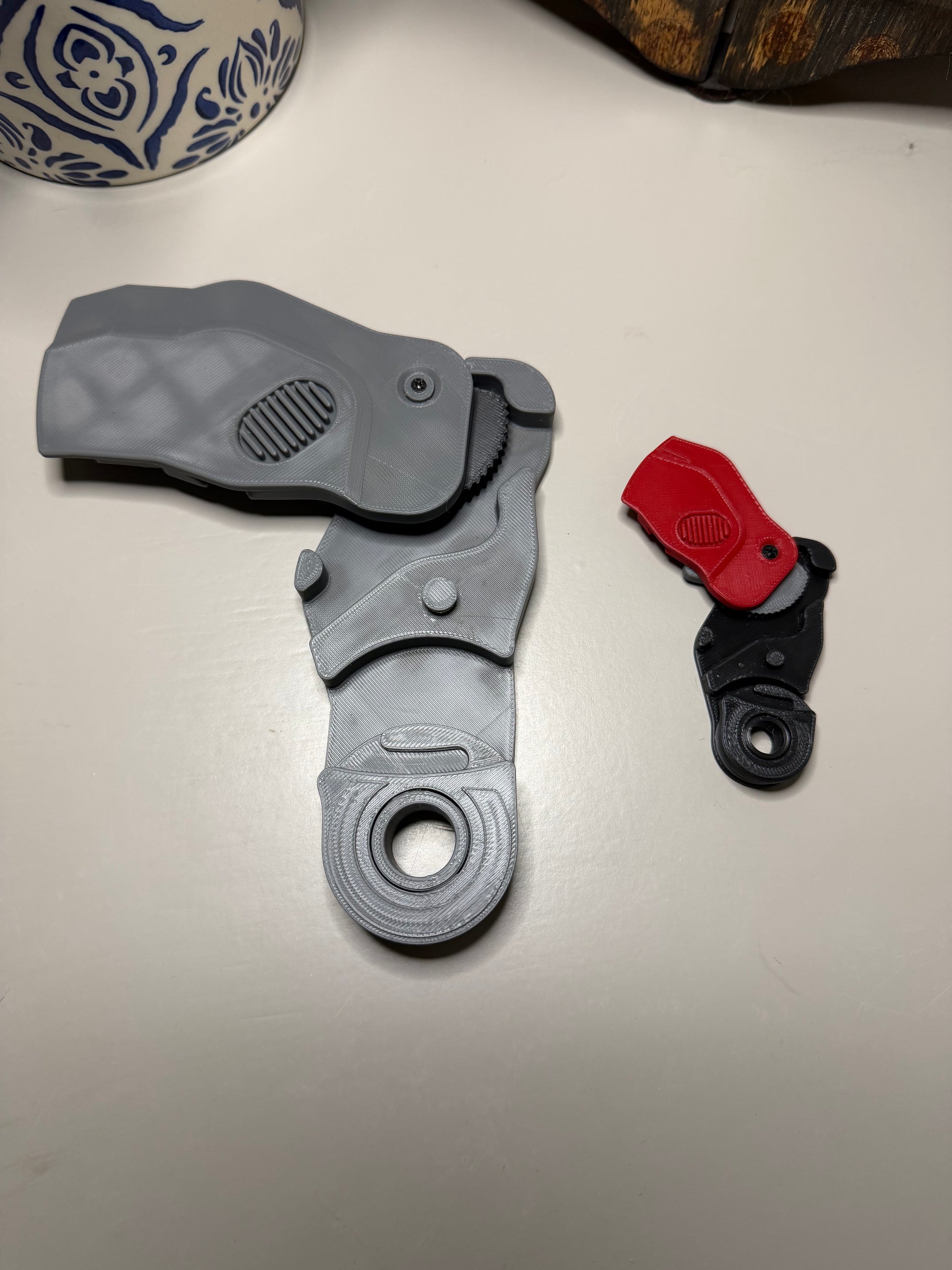

Bring rope-grab and hauling concepts to your tabletop training setup with this printable CAPTO-style rope grab and pulley. Featuring a toothed cam, thumb-release tab, opening front plate and twist-lock pulley cover, this model gives students a hands-on way to practice rope loading, gripping, releasing and resetting a haul system.

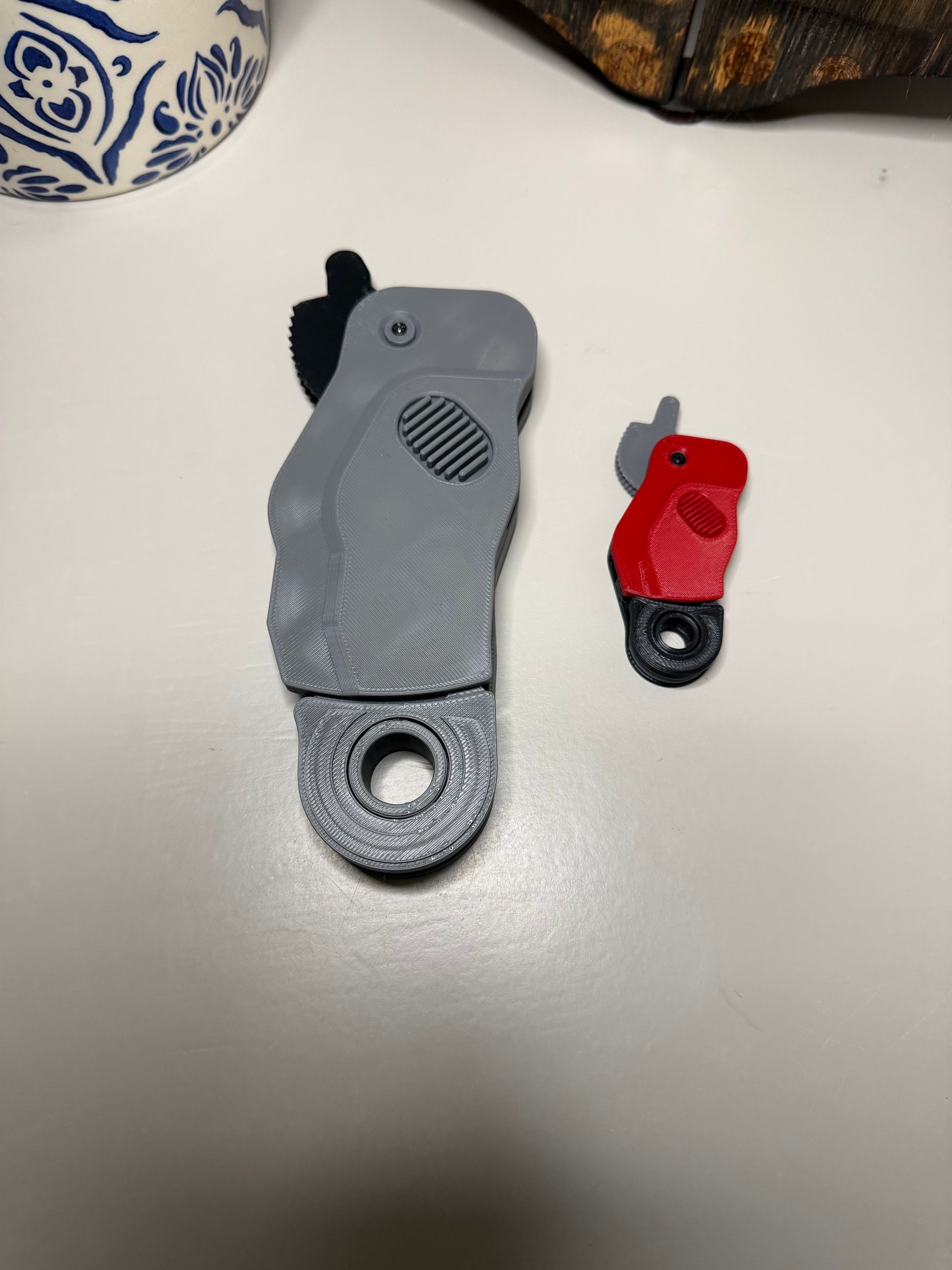

Two sizes included:

• Mini: Sized for 4 mm paracord, with an extended thumb-release tab.
• Large: Sized for 8 mm rope, with an enlarged body and front plate for side-loading clearance.

Your download includes:

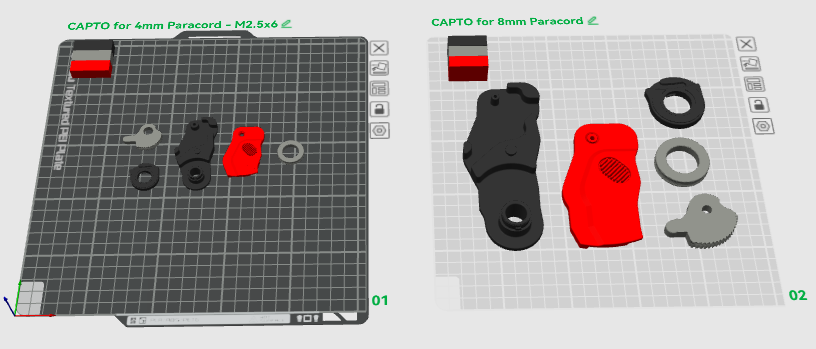

• Complete 3MF print files for both sizes.
• Five printed components per model: body, front plate, cam, pulley wheel and twist-lock cover.
• Illustrated PDF assembly and use guide, including close-ups of pulley installation and twist-lock operation.

Hardware needed:

• Mini: M2.5 × 6 mm countersunk retaining screw.
• Large: M3 × 12 mm retaining screw.

Hardware, rope and other training accessories are not included.

Printing and assembly

Print the supplied files at 100% scale—the sizing is already applied. Select your printer and filament profile, then slice before printing. Follow the included guide and tighten retaining screws only enough to secure the parts while allowing free movement.

Use alongside your other tabletop rigging props to demonstrate rope-grab placement and hauling-system operation. A complete 3:1 setup requires appropriate rope routing and a separate progress-capture device.

DIGITAL DOWNLOAD ONLY — No physical product will be shipped. Metal hardware, rope, and carabiners are not included. For personal and training use only. A commercial license is not included. Files may not be resold or redistributed.

TABLETOP TRAINING USE ONLY: These miniature pulleys are not load-rated and must never be used for actual rescue, climbing, fall protection, supporting people or animals, or lifting heavy loads. They are intended only for tabletop demonstrations and training. These are independent training models, not products manufactured or endorsed by Gibbs or Petzl.
